ERD-60 Mini Fin Mill

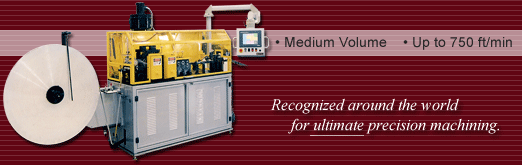

Picture of ERD-60

  • Medium Volume
  • Up to 750 ft/min

Recognized around the world for ultimate precision machining.

The new ERD-60 Medium Volume Production Fin Mill is the latest is a series of cost-effective products created by Ecko's Engineers.

Diagram of ERD-60 Dimensions


  • Width: 140" (3.556m)
  • Height: 78.5" (1.994m)
  • Depth: 35" (889mm)

Standard Features

  • Main Drive 3 HP, 240/480V, 60Hz Variable Speed, 3 Phase AC Motor
  • Boston 5:1 Gear Reducer Unit with Base Kit for Main Motor Drive
  • Base-Mounted Powered Single Uncoiler
    • Fin Material: Aluminum
    • Inside Diameter: 6" (152.4mm) or 12" (304.8mm)
    • Outside Diameter: up to 60" (1.524m)
    • Material Width: up to 4.5" (114.3mm)
    • Material Input Speed: up to 750' (228.6m) per minute
  • Low Stock Sensor Probe - 12" ID (304.8mm) or 16" ID (406mm)
  • Picture of Roll Die Tooling
  • Manual Operative Expander Pads
  • Dancer Arm Unit with Electronic Pivot Sensor
  • Hardened Precision Entrance Stock Gauge with Tracking Rollers
  • Hardened Adjustable Exit Stock Gauges
  • Adjustable Stainless Steel Stock Chute
  • Electronic Anti-Wrap System
  • Electronic Convolution Counter and Batch Counter
  • Electronic Brake System
  • Step-Down Transformer (480V/60Hz/3 Phase to 240V/60Hz/3 Phase/15kva)
  • Pneumatic Pad Pressured Stock Lubricator
  • CFM Filter Mist System
  • Custom Servo Control Cut-Off System
  • Touch Screen Control Panel with Swivel Support Arm
  • Roll Head Gathering Box Gear Guards
  • Full-Gull-Wing Guard Package
  • Regulated 90psi Roll Die Cleaning System
  • 1-1/2 Axis Fin Machine System

Optional Features

  • ERD-160 Automatic Traying Machine
  • Custom Ormec Control Stop & Go Cut-Off System
