ERD-70 High Production Fin Mill

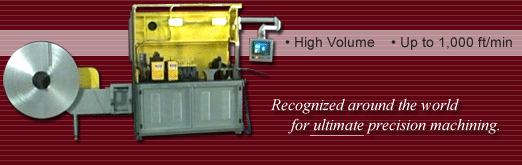

Picture of ERD-70 Fin Mill

  • High Volume
  • Up to 1,000 ft/min

Recognized around the world for ultimate precision machining.


The new ERD-70 High Production Fin Mill is the latest is a series of cost-effective products created by Ecko's Engineers.

Dimensions

  • Width: 140" (3.556m)
  • Height: 78.5" (1.994m)
  • Depth: 30" (762mm)

Standard Features

  • Main Drive 3 HP, 240/480V, 60Hz Variable Speed, 3 Phase AC Motor
  • Single Uncoiler
    • Fin Material: Aluminum
    • Inside Diameter: 6" (152.4mm), 12" (304.8mm) or 16" (406.4mm)
    • Outside Diameter: up to 72" (1.829m)
    • Material Width: up to 4.5" (114.3mm)
      Larger widths may be accommodated per customer specification. Please contact us with special requirements.
    • Material Input Speed: up to 1000' (304.8m) per minute
    • Picture of ERD-70 with Cage
  • Dancer Arm Unit with Electronic Pivot Sensor
  • Micro-Coat Lubrication System
  • CFM Filter Mist System
  • Stainless Steel Dump Station
  • Custom Servo Control Cut-Off System
  • Touch Screen Control Panel with Swivel Support Arm
  • FMS Tension System with Digital Readout

Optional Features

  • ERD-160 Automatic Traying Machine
